Apache Solr 认证绕过漏洞(CVE-2024-45216)

h1ei1

2024-10-25

漏洞分析

环境搭建：

security.json

{
  "authentication": {
    "class": "solr.BasicAuthPlugin",
    "credentials": {
      "solr": "IV0EHq1OnNrj6gvRCwvFwTrZ1+z1oBbnQdiVC3otuq0= Ndd7LKvVBAaZIF0QAVi1ekCfAJXr1GGfLtRUXhgrF8c="
    },
    "blockUnknown": false,
    "": {
      "v": 0
    }
  },
  "authorization": {
    "class": "solr.RuleBasedAuthorizationPlugin",
    "permissions": [
      {
        "name": "security-edit",
        "role": "admin"
      }
    ],
    "user-role": {
      "solr": "admin"
    }
  }
}

docker-composer.yml

version: '3.7'
services:
  solr1:
    image: solr:9.6.0
    container_name: solr1e
    ports:
     - "8983:8983"
     - "5006:5006"
    environment:
      - ZK_HOST=zoo1:2181,zoo2:2181,zoo3:2181
      - SOLR_OPTS=-agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=*:5006
    volumes:
      - [your-local-path]security.json:/var/solr/data/security.json
    networks:
      - solr
    depends_on:
      - zoo1
      - zoo2
      - zoo3


  solr2:
    image: solr:9.6.0
    container_name: solr2
    ports:
     - "8982:8983"
    environment:
      - ZK_HOST=zoo1:2181,zoo2:2181,zoo3:2181
    networks:
      - solr
    depends_on:
      - zoo1
      - zoo2
      - zoo3


  solr3:
    image: solr:9.6.0
    container_name: solr3
    ports:
     - "8981:8983"
    environment:
      - ZK_HOST=zoo1:2181,zoo2:2181,zoo3:2181
    networks:
      - solr
    depends_on:
      - zoo1
      - zoo2
      - zoo3


  zoo1:
    image: zookeeper:3.8
    container_name: zoo1
    restart: always
    hostname: zoo1
    ports:
      - 2181:2181
      - 7001:7000
    environment:
      ZOO_MY_ID: 1
      ZOO_SERVERS: server.1=zoo1:2888:3888;2181 server.2=zoo2:2888:3888;2181 server.3=zoo3:2888:3888;2181
      ZOO_4LW_COMMANDS_WHITELIST: mntr, conf, ruok
      ZOO_CFG_EXTRA: "metricsProvider.className=org.apache.zookeeper.metrics.prometheus.PrometheusMetricsProvider metricsProvider.httpPort=7000 metricsProvider.exportJvmInfo=true"
    networks:
      - solr

  zoo2:
    image: zookeeper:3.8
    container_name: zoo2
    restart: always
    hostname: zoo2
    ports:
      - 2182:2181
      - 7002:7000
    environment:
      ZOO_MY_ID: 2
      ZOO_SERVERS: server.1=zoo1:2888:3888;2181 server.2=zoo2:2888:3888;2181 server.3=zoo3:2888:3888;2181
      ZOO_4LW_COMMANDS_WHITELIST: mntr, conf, ruok
      ZOO_CFG_EXTRA: "metricsProvider.className=org.apache.zookeeper.metrics.prometheus.PrometheusMetricsProvider metricsProvider.httpPort=7000 metricsProvider.exportJvmInfo=true"
    networks:
      - solr

  zoo3:
    image: zookeeper:3.8
    container_name: zoo3
    restart: always
    hostname: zoo3
    ports:
      - 2183:2181
      - 7003:7000
    environment:
      ZOO_MY_ID: 3
      ZOO_SERVERS: server.1=zoo1:2888:3888;2181 server.2=zoo2:2888:3888;2181 server.3=zoo3:2888:3888;2181
      ZOO_4LW_COMMANDS_WHITELIST: mntr, conf, ruok
      ZOO_CFG_EXTRA: "metricsProvider.className=org.apache.zookeeper.metrics.prometheus.PrometheusMetricsProvider metricsProvider.httpPort=7000 metricsProvider.exportJvmInfo=true"
    networks:
      - solr

networks:
  solr:

docker-composer up -d 启动环境

docker exec -it /bin/bash

solr zk cp /var/solr/data/security.json zk:/security.json -z zoo1:2181,zoo2:2181,zoo3:2181

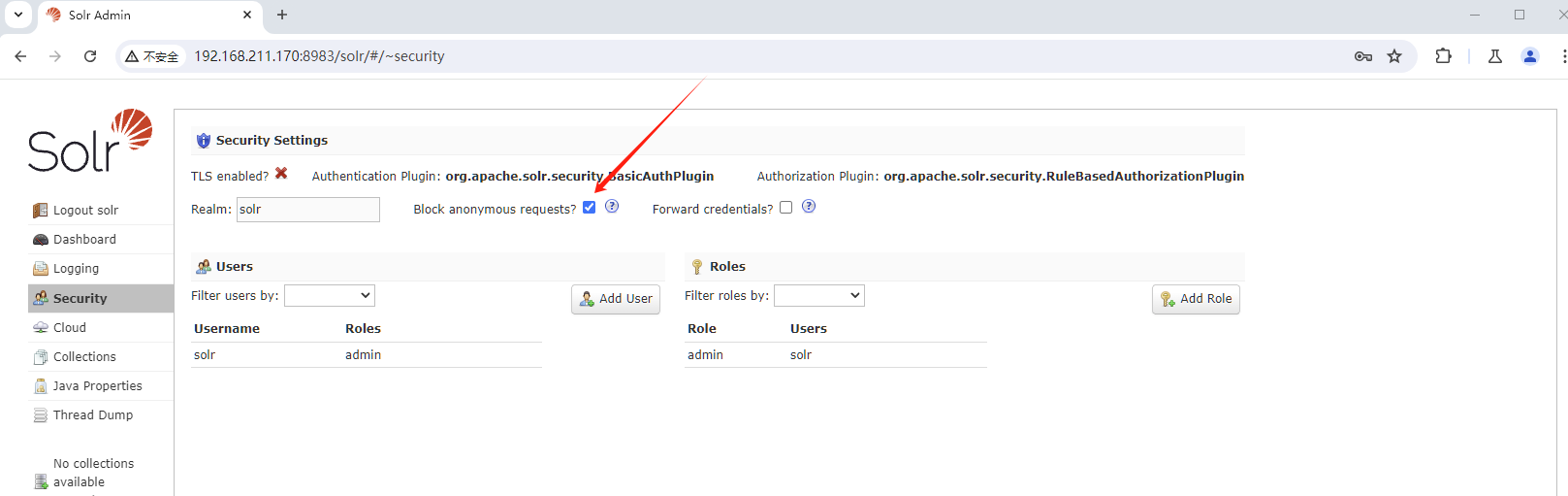

访问http://ip:8983/ 使用账号密码： solr:SolrRocks登录后开启身份验证

漏洞分析：

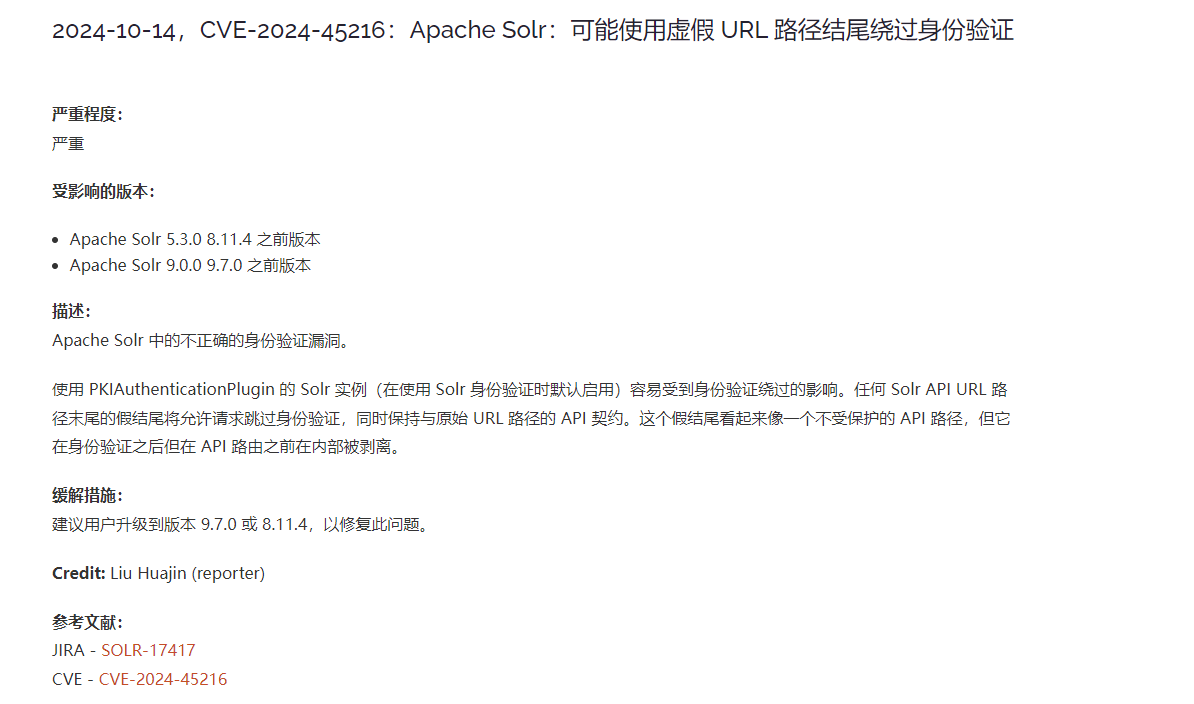

根据漏洞通告：https://solr.apache.org/security.html#cve-2024-45216-apache-solr-authentication-bypass-possible-using-a-fake-url-path-ending

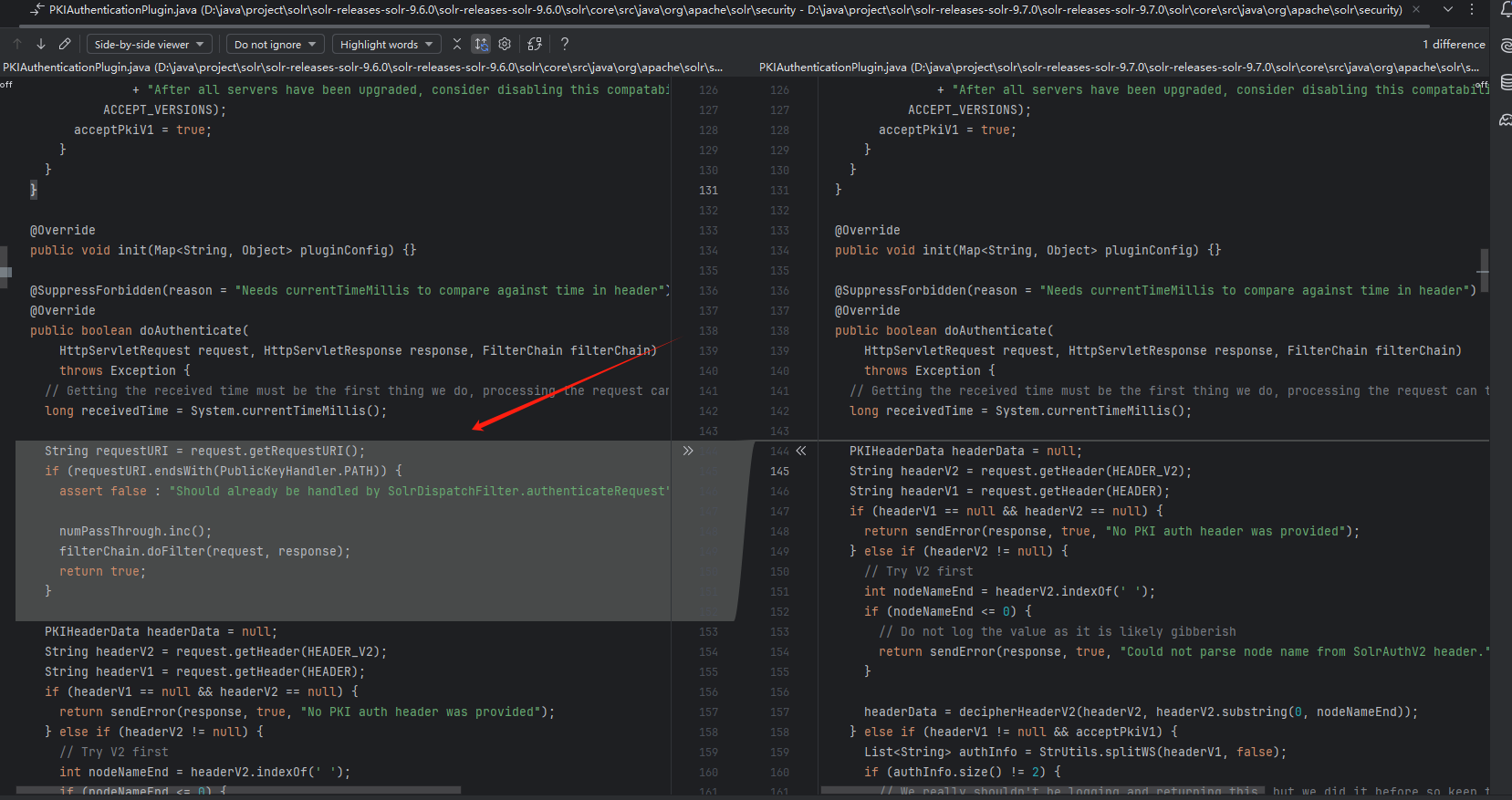

查看Solr 9.6.0和Solr 9.7.0的PKIAuthenticationPlugin对比，可以看到补丁是删除了一处权限校验，这里会检查传入的url如果以PublicKeyHandler.PATH（/admin/info/key）结尾就会绕过后续的权限校验

org.apache.solr.security.PKIAuthenticationPlugin#doAuthenticate

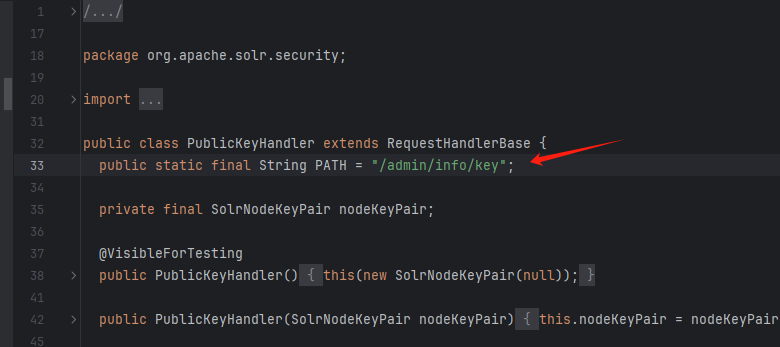

org.apache.solr.security.PublicKeyHandler

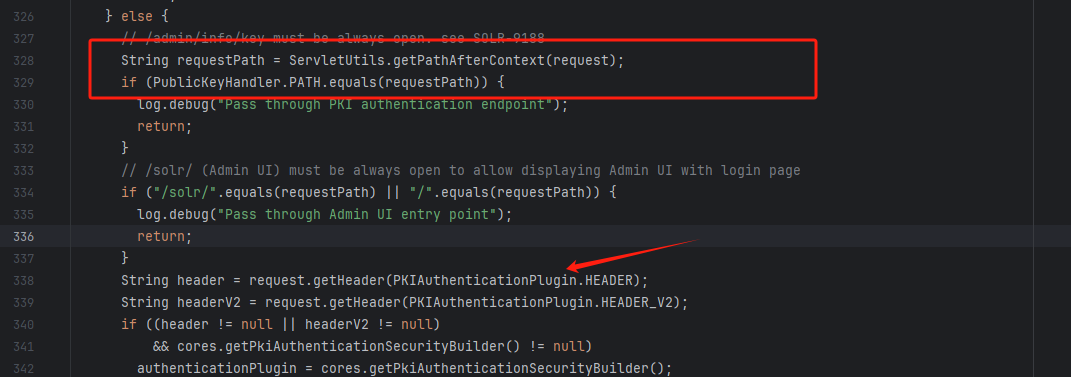

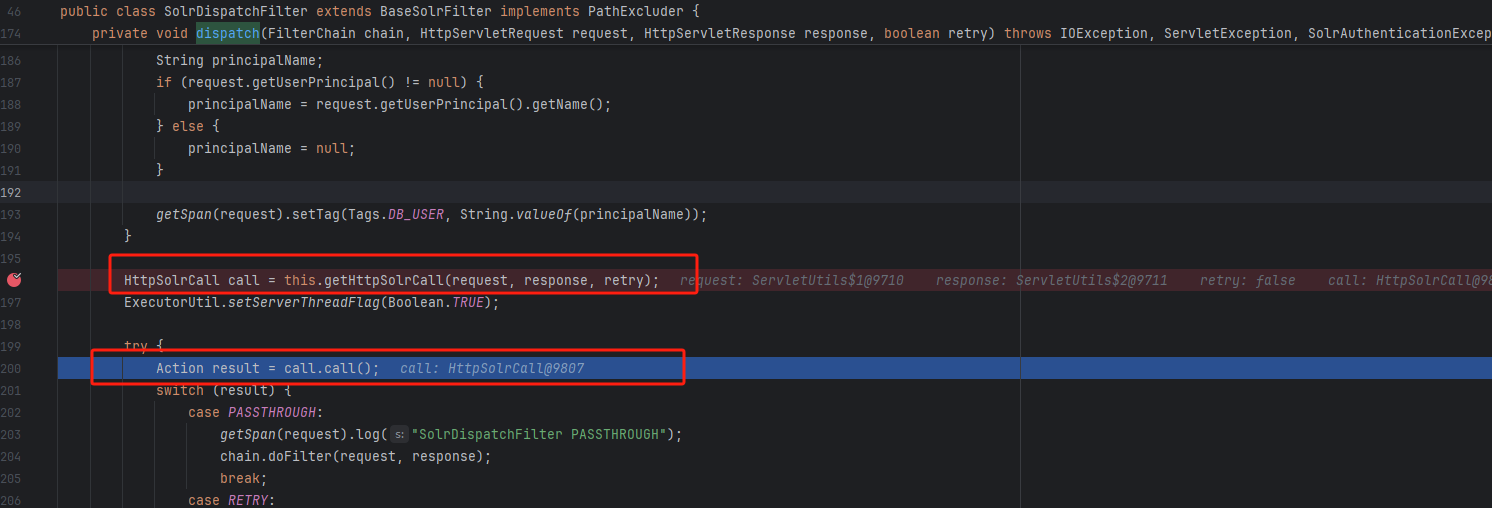

而在org.apache.solr.servlet.SolrDispatchFilter#authenticateRequest中会使用getPathAfterContext方法获取/solr/后的url和PublicKeyHandler.PATH（/admin/info/key）作对比从而导致失败.

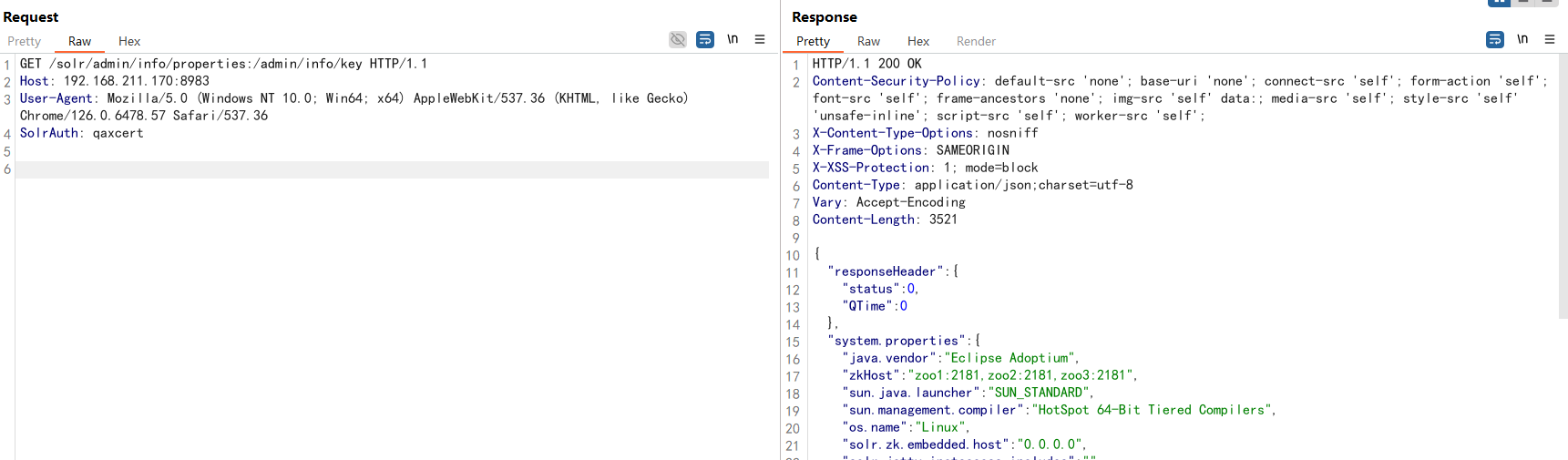

因此我们很容易想到可在/solr/和/admin/info/key之间添加路径来进行绕过，我们发送请求http://ip/solr/123/admin/info/key，并在header头添加Solrauth: qaxcert来测试一下。
